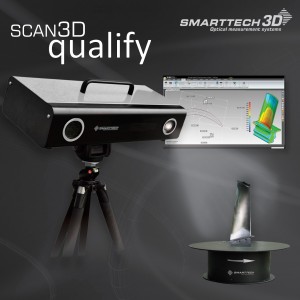

3D Scanner integrated with Geomagic Control software
Complex solution for quality control and inspection:
Compare your 3D object model with CAD model (statistic, colorfull map of devotion),
Create 2D cross-sections in any position and dimension your model,
Inspection of geometric tolerance,
Generating automatic 3D PDF reports.
High density of measuring surface (to 160 points/mm2) and precise measure (precise to 30?m) provide to make the most accurate inspections. Using the highest class inspection software – Geomagic Control – allows you to generate automatic reports and control dimension in specified tolerance (pass/fail).
Our systems have special certificates that confirms accurancy of our 3D scanners granted by accredited measurement laboratory.
[fancy_header variation=”black”]Technical specifications[/fancy_header]
[fancy_table]
| Scanning Technology | Structural White Light |
| Detector resolution | 10; 5; 2 Mpix |
| Measuring field [mm2] | 150×200 – 1200×1600 |
| Distance between points [mm] | 0,04 – 0,40 |
| Sampling rate [points/mm2] | 5 – 330 |
| Nuber of points from one scan | 2 – 10 milions |
| Texture scanning | + |
| Time of scanning | 1 – 10 sec |
[/fancy_table]
