Cobra A1 V-Scan

V-cradle semi automatic book scanner – Large format specialist

Quality & efficiency for highest conservatory demands

The use of the latest matrix sensor technology in our advanced “book saver” will provide you with the opportunity to benefit from the additional advantages in the area of image quality and productivity.

[image_frame style=”framed_shadow” align=”left”][/image_frame]

The Light-Control-Module we developed especially for the book2net Cobra offers the possibility to adapt the light intensity to your conservatory needs. The light intensity resp. color temperature can be reduced down to 2000 lux.

State-of-the-art PLC control
High-precision linear drive

Variable control:

  • Fully automatic
  • Semi-automatic
  • Manually
  • Time-controlled
  • Action-controlled
  • User-controlled
  • Programmable scan-processes
  • Book size-hormonized traverse paths
  • Wearfree precision guidance of the glass plate
  • Electronic pressure control
  • Unique butterfly system
  • Available as an option, allows scanning without additional pressure.

Features

  • Semi-robotic book scanner
  • Maximum care for your valuable books & collections
  • Double head
  • High performance area sensors
  • Selectable options: 400 dpi, 600 dpi
  • 0.3 sec. scanning time (full format at 300/400 dpi)
  • 3.5 sec. processing time (scanning + imaging + storage!)
  • USB 3.0 interface

[fancy_images]

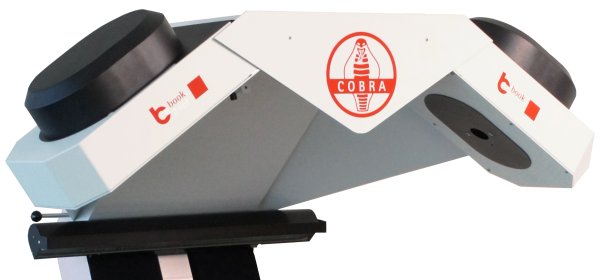

[image caption=”Cobra A1 V-Scan”]http://www.books2ebooks.com/wp-content/uploads/2019/02/Cobra2.jpg[/image]
[image caption=”Cobra A1 V-Scan”]http://www.books2ebooks.com/wp-content/uploads/2019/02/Cobra3.jpg[/image]
[image caption=”Unique butterfly system”]http://www.books2ebooks.com/wp-content/uploads/2019/02/Cobra4.jpg[/image]
[image caption=”Unique butterfly system”]http://www.books2ebooks.com/wp-content/uploads/2019/02/Cobra5.jpg[/image]
[/fancy_images]
[clearboth]

See how Cobra works!
